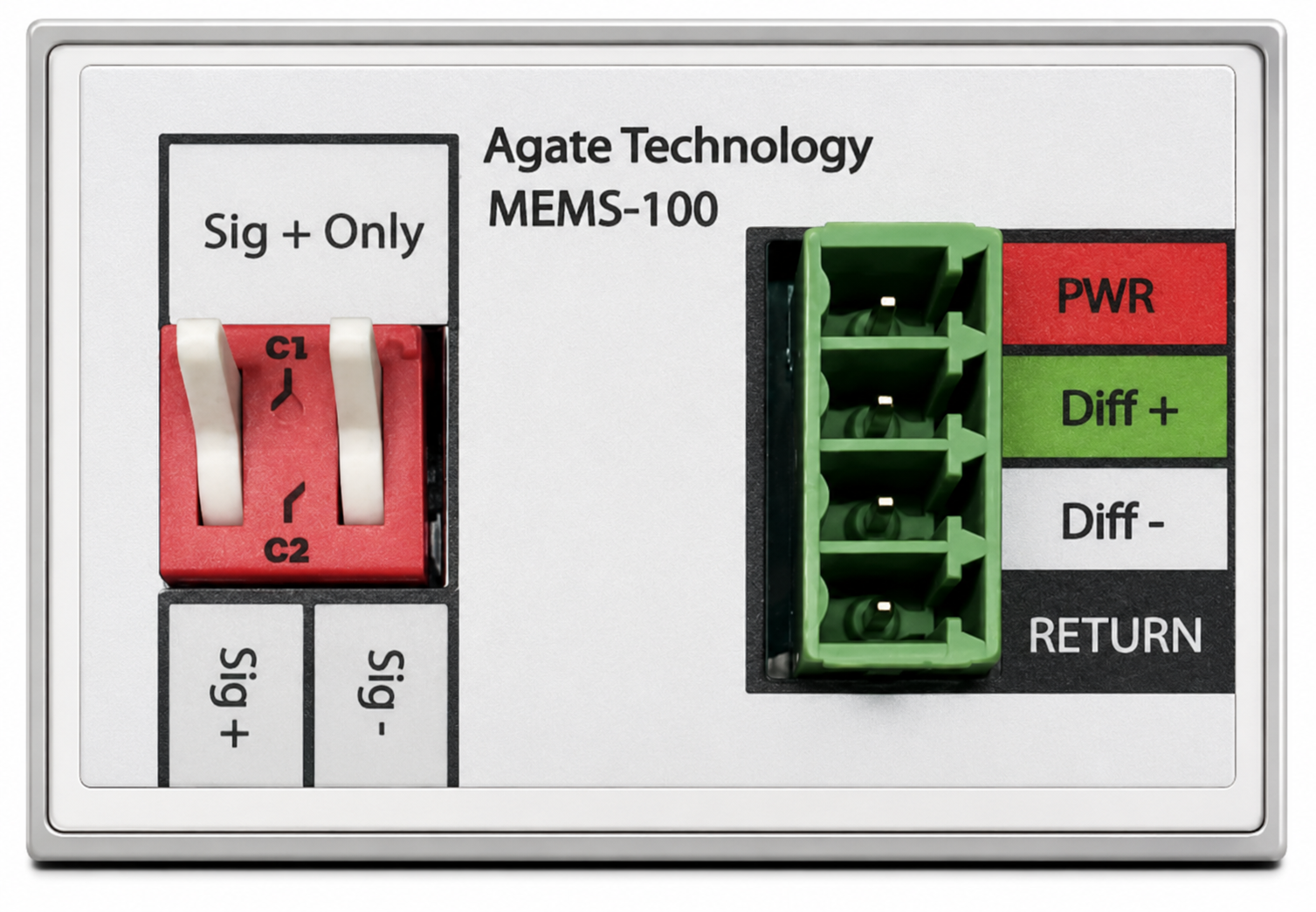

The MEMS adapter board allows an AT2040 to be used with components such as PR and capacitive sensors manufactured by Kistler®, Endevco®, and Dytran®. The adapter plugs into the shaker DIN8 connector for power and signal. 7 to 10 volt power is supplied to the sensor and the adapter board converts the signal from a differential input to a single-ended for sensitivity measurement. The adapter can also be used with 3-wire capacitive sensors by a simple DIP Switch Toggle. Specifications

• Programmable Supply
  • Voltage:
    • Min: 7V
    • Max: 20V
• X1 (For High Sensitivity 500 to 2000 mv/G Sensors)
  • Gain: 10.0 ± 0.01%
  • Common Mode: 0–20V
  • Common Mode Rejection: 80 dB
• X10 (For 0.1mv to 500 mv/G Sensors)
  • Gain: 1.0 ± 0.025%
  • Common Mode: ± 0–11V
  • Common Mode Rejection: 80 dB
